Vertical Electrical Sounding (VES)

1km Deep Geothermal Application

1D Electrical Imaging

Objective

Study was performed at a geothermal site in Turkey to determine deep subsurface layers to decide drilling depth and location at the study area.

Layout

The survey was performed in July 2010 in Turkey with AGI SuperSting R1/IP/SP instrument with manual cables.

Instrument

The AGI SuperSting R1/SIP/SP resistivity instrument with  manual cablesEarthImager 1D software were used.

Array type used

The Shlumberger array was used to collect the 1D Vertical Electrical Sounding (VES) data set with manaul cables.

Obtained Results

The result shared here is one of the many VES results at the study area. The VES result successfully demonstrates the estimated drilling depth is about 1000m.

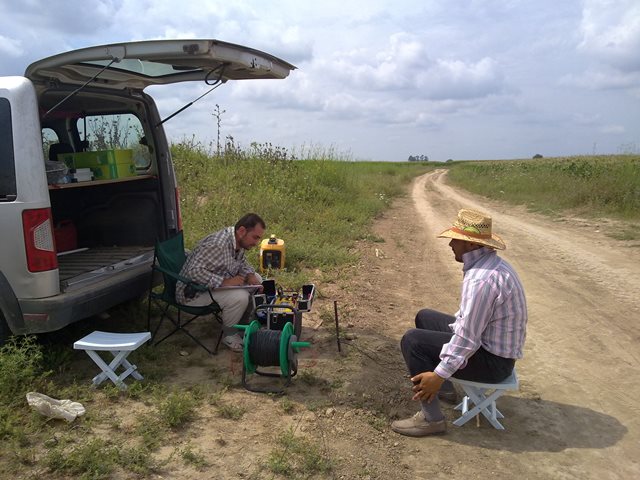

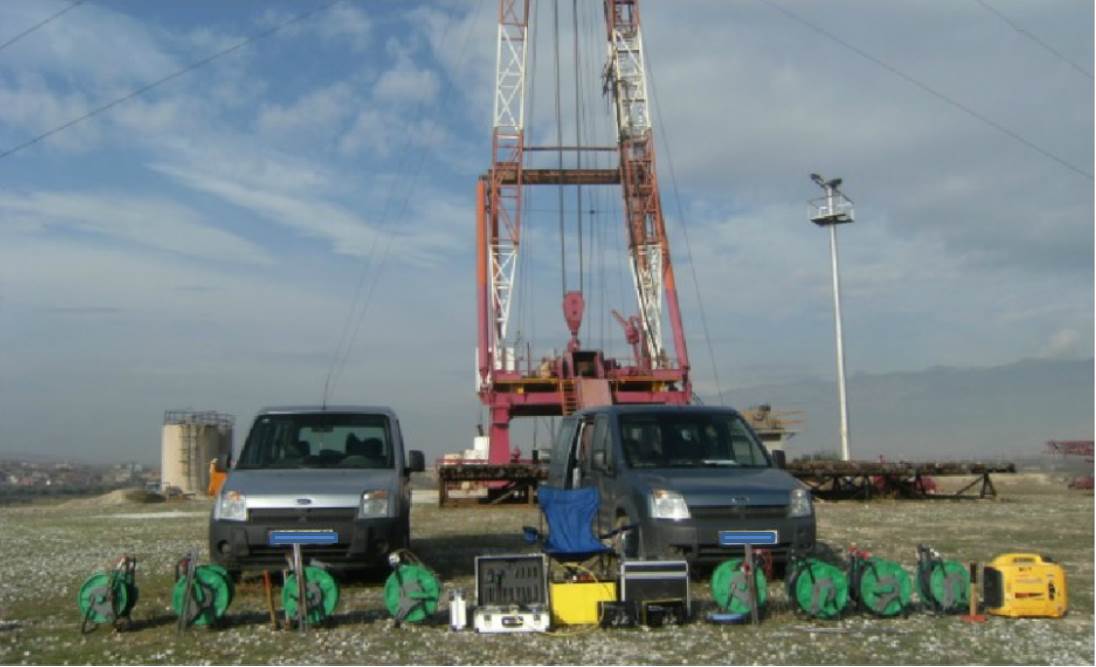

Field Work

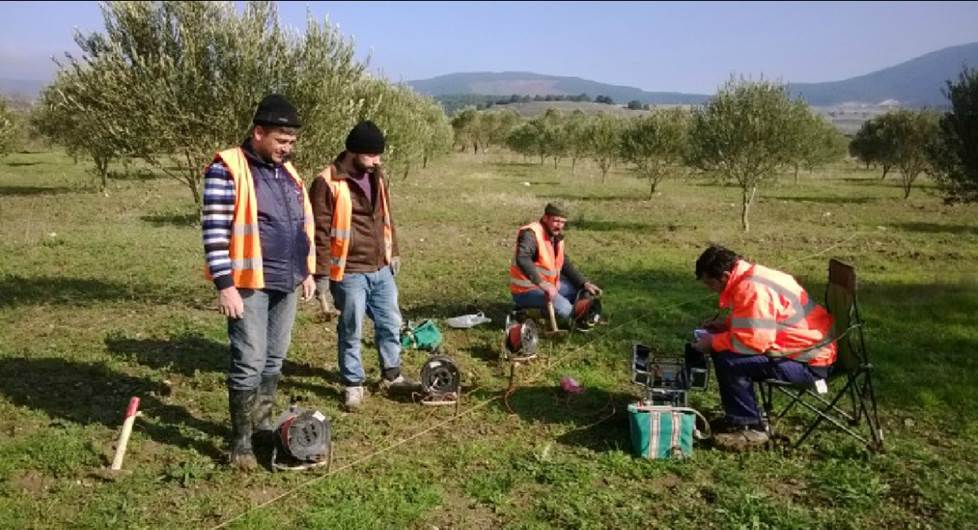

Field Work

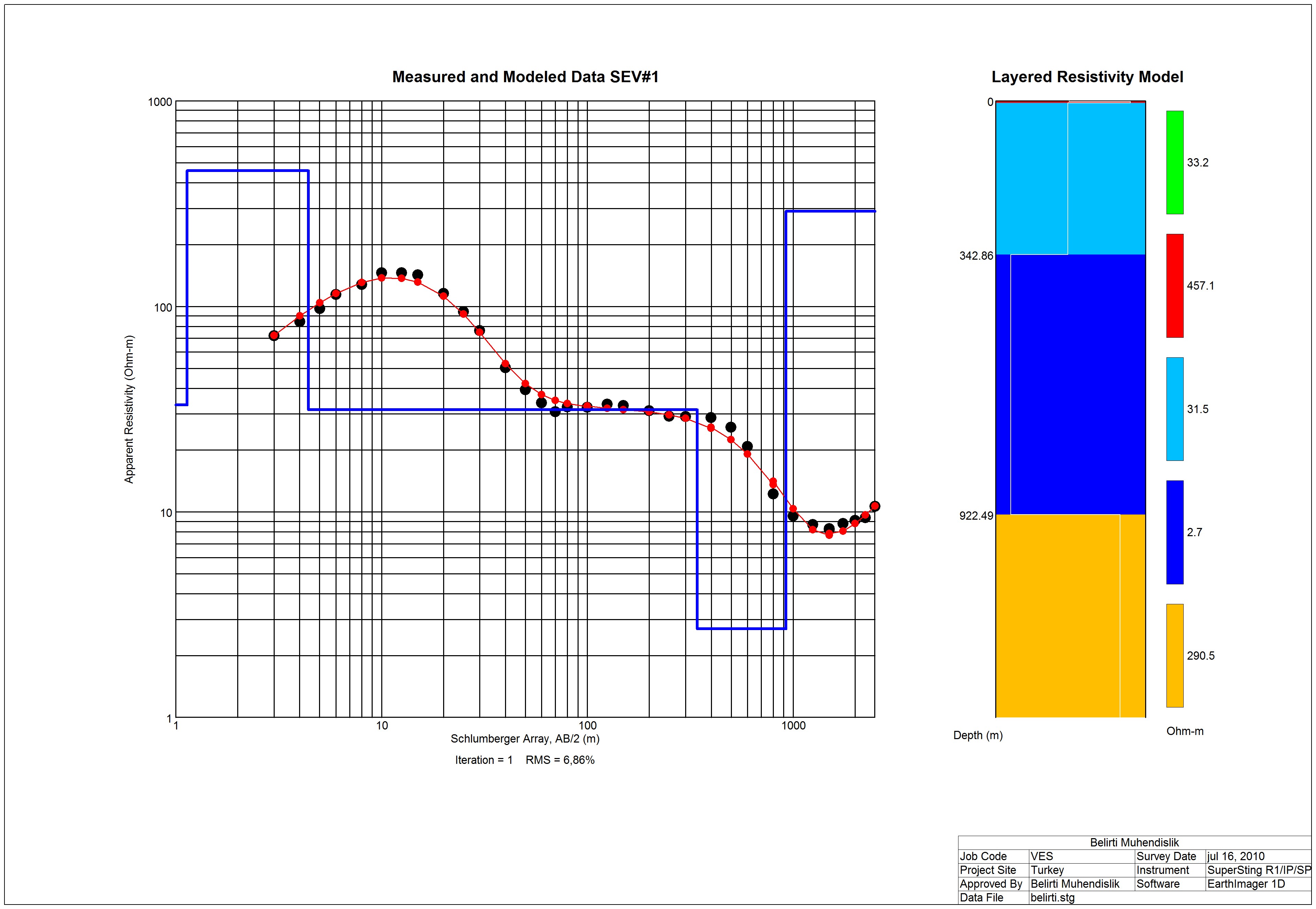

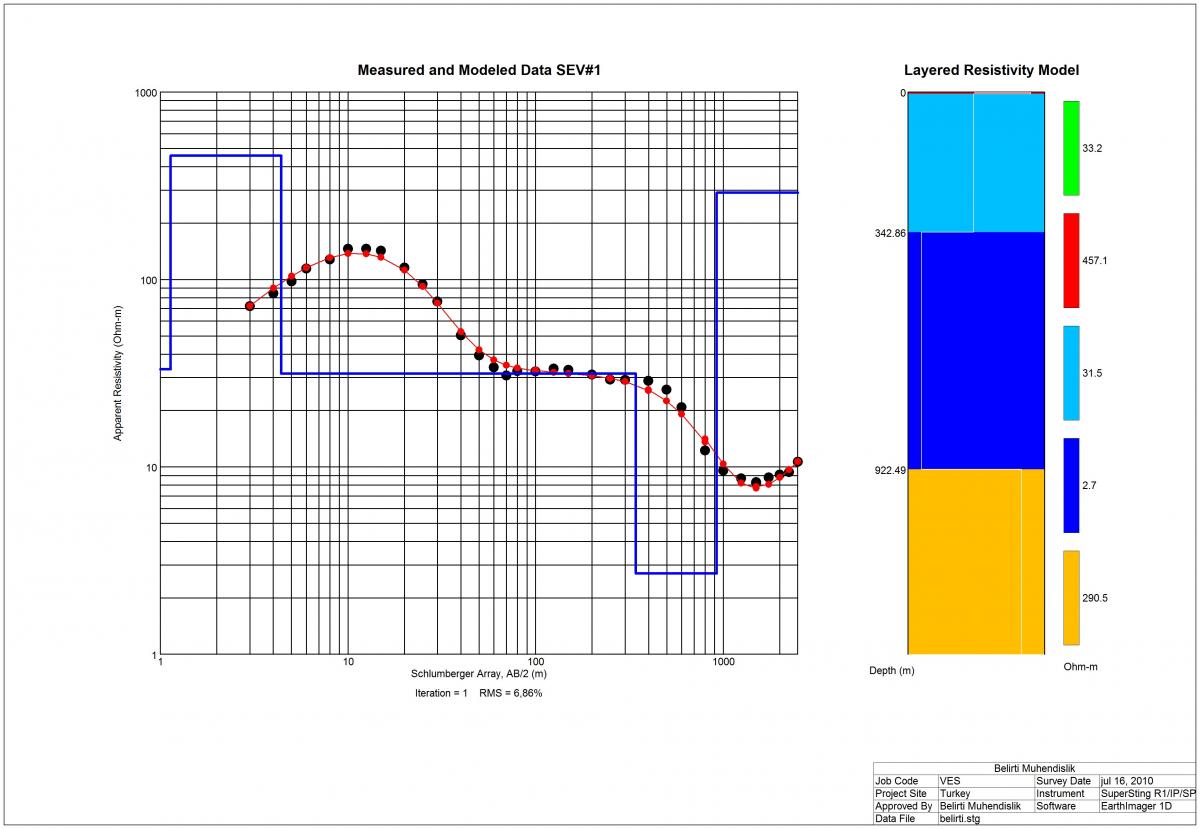

DataFitInvModel
