3D Resistivity Imaging | New Parking Garage Structure

Locate Drainage Rates In Soils

Purpose

A multi-story parking garage structure was built for a hospital in east Texas, U.S.A. over an existing parking lot. This type of new construction involves advanced knowledge of the subsurface conditions for safety, excavation planning and both structure and drainage design. Three-dimensional (3D) Electrical Resistivity Imaging (ERI) was used to map clay and sandy-clay deposits previously identified in limited locations by shallow boreholes. 3D resistivity imaging models provided unprecedented new information for the structure design and project planning.



Direct Applications

To 3D map the soil types and water content below ground in flat or rugged terrain with direct application to civil and geotechnical engineering, groundwater exploration, environmental remediation, archaeological reconnaissance, and mineral exploration projects.



Survey

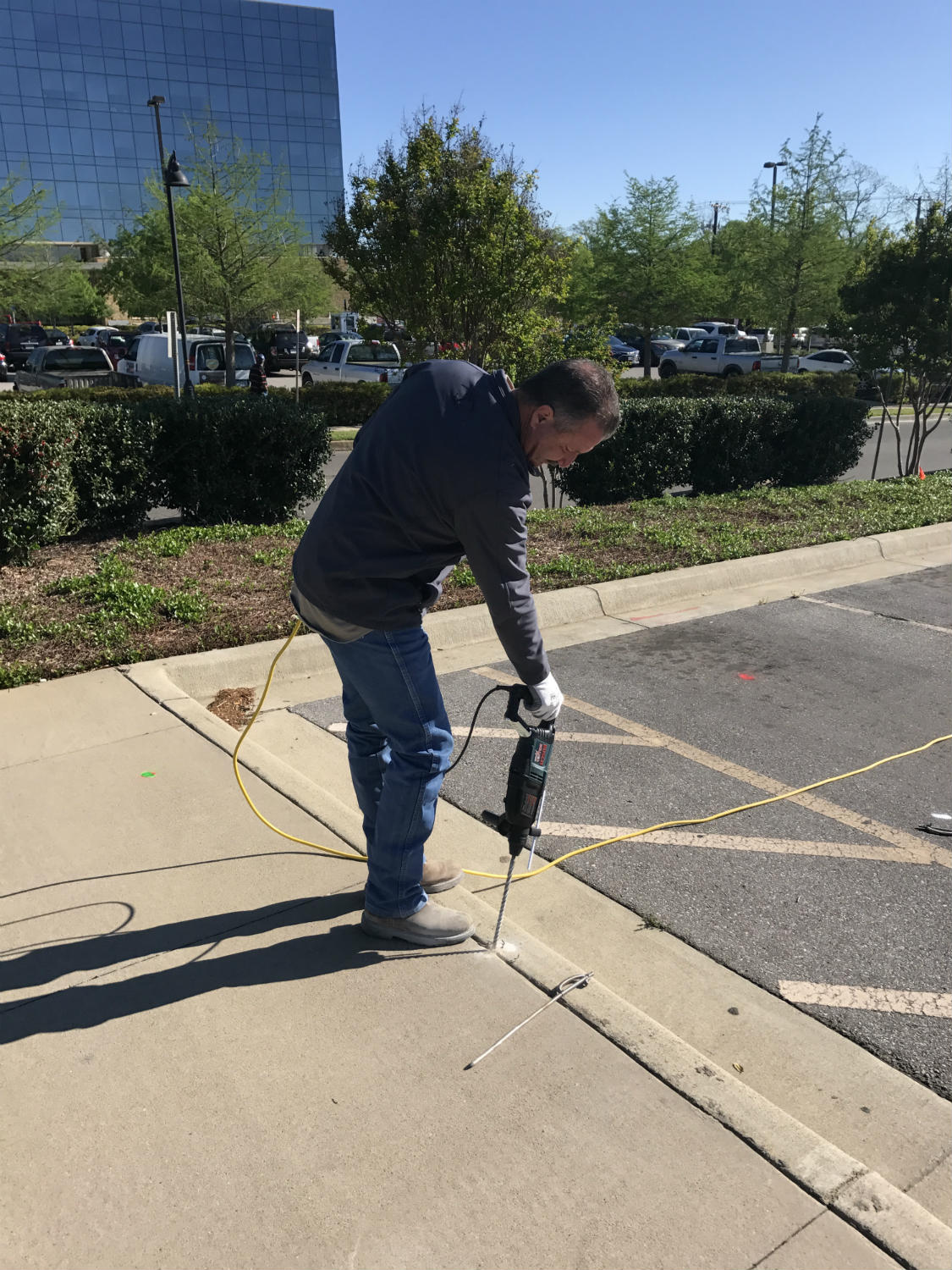

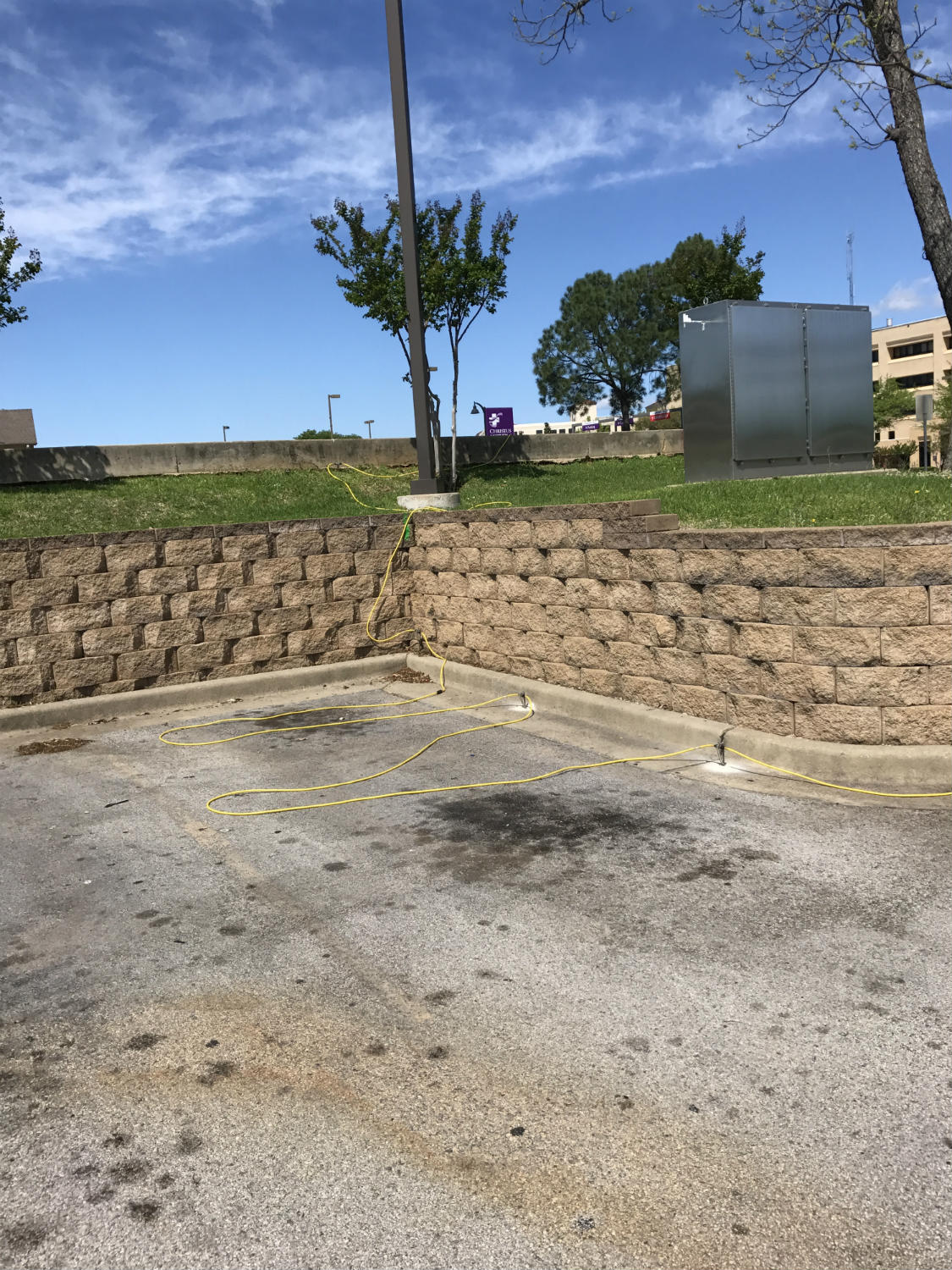

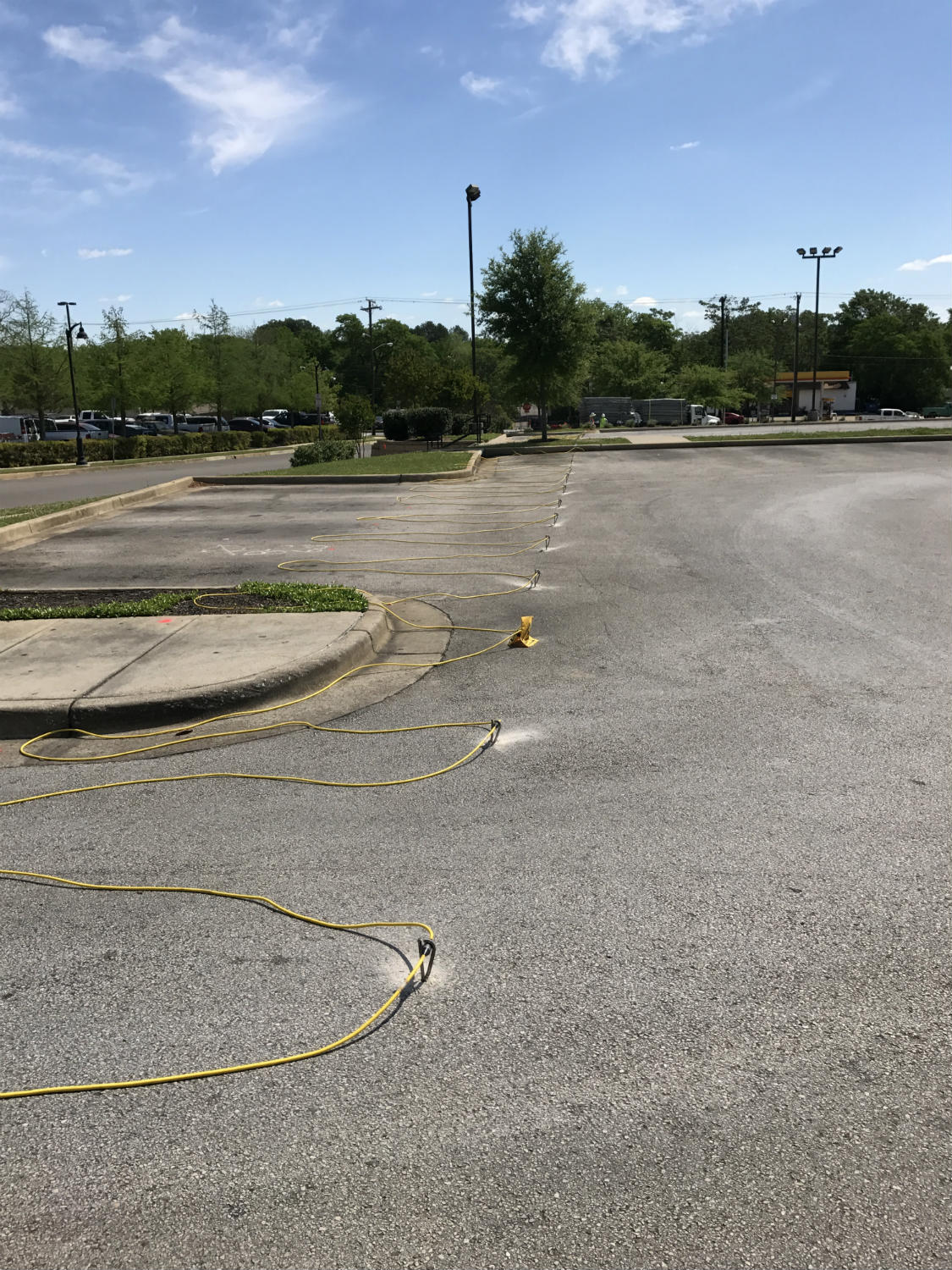

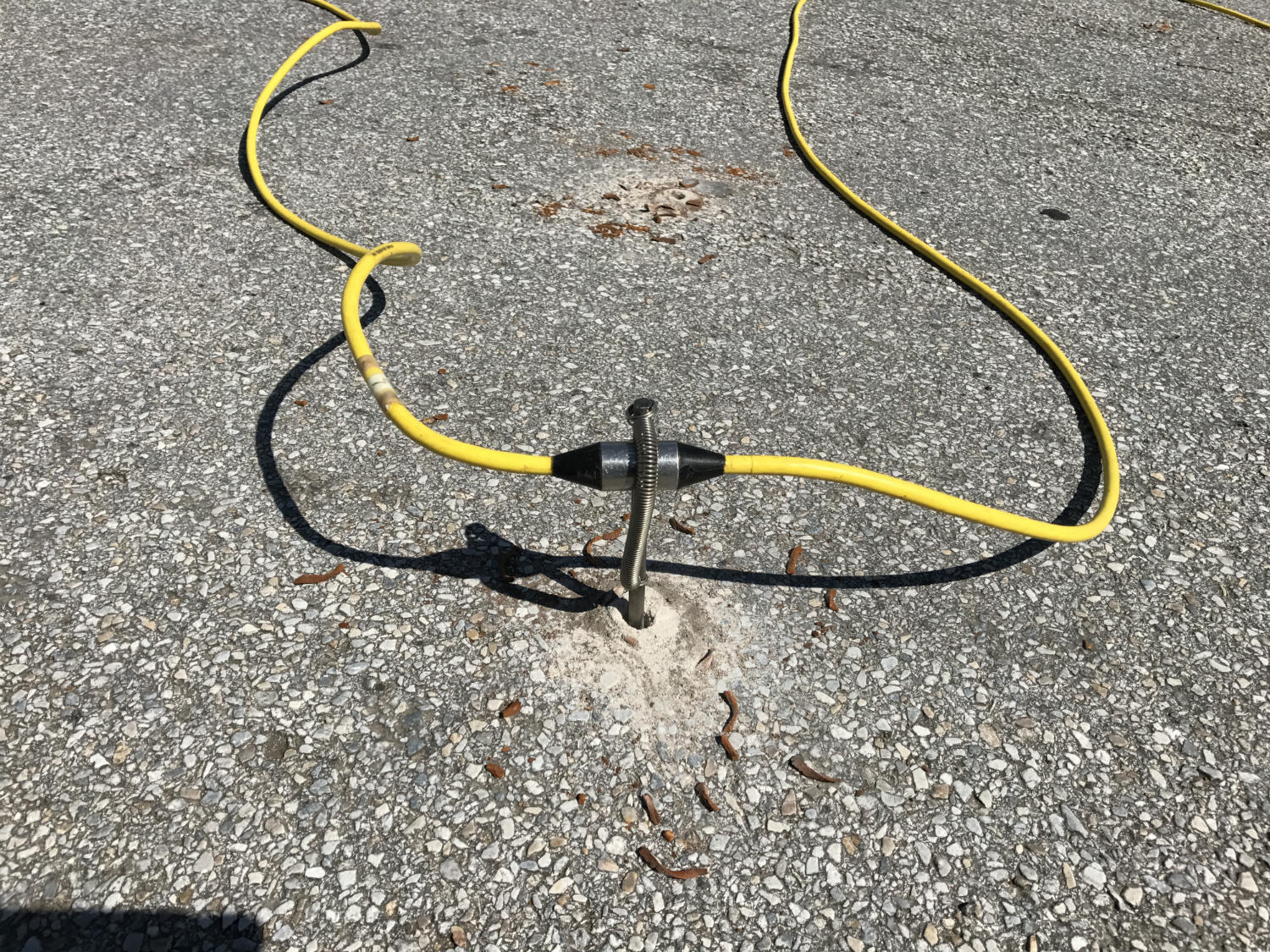

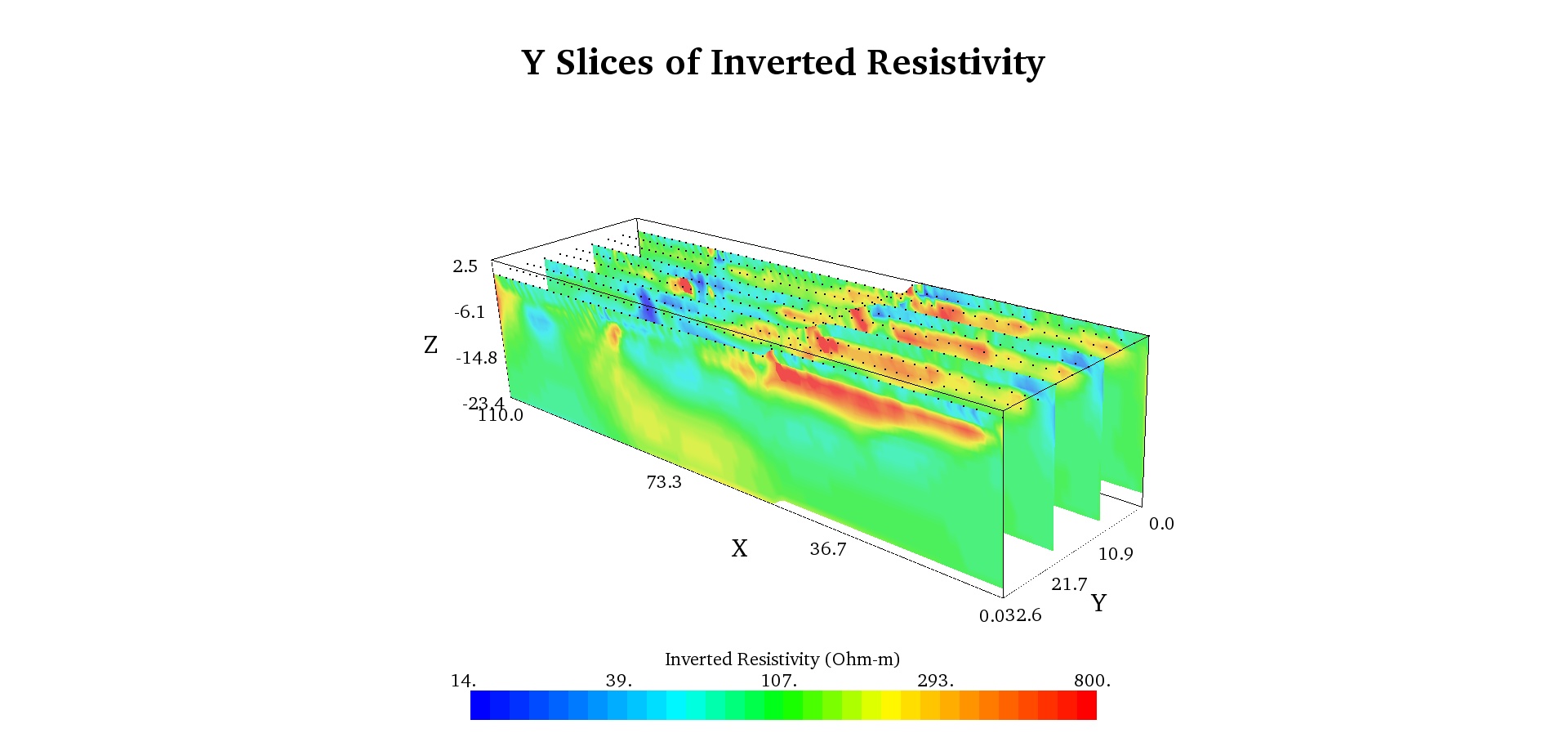

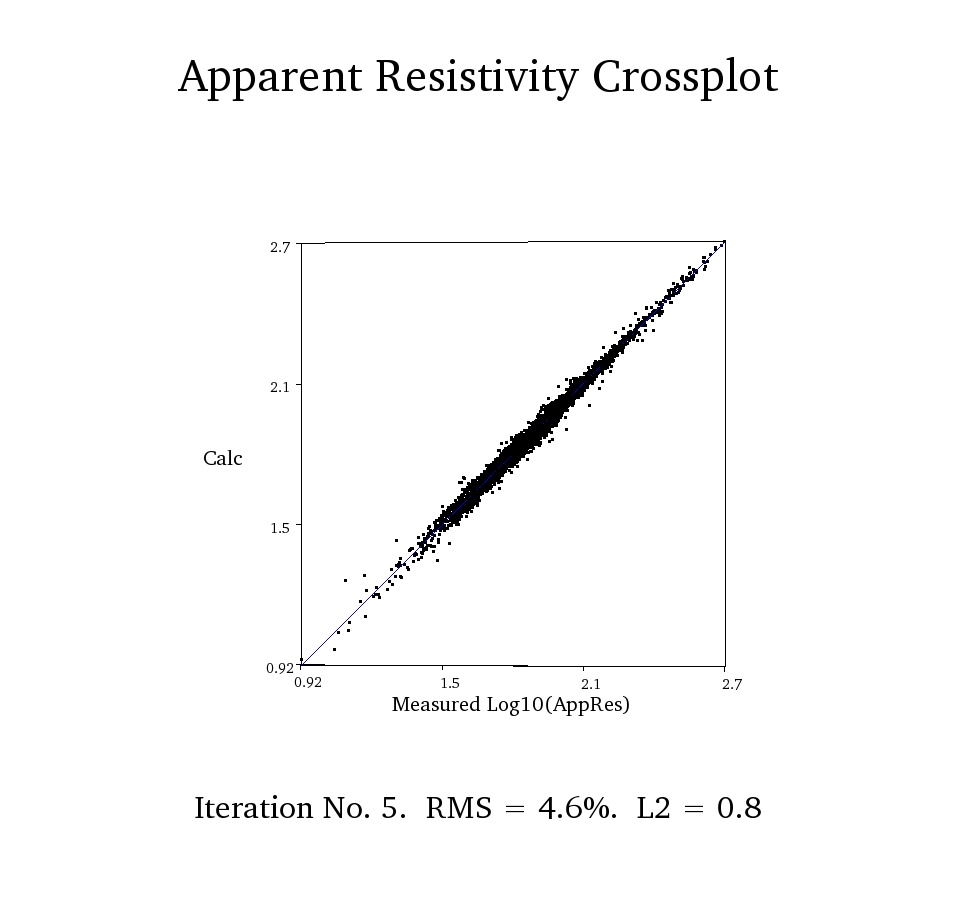

The 3D ERI survey was completed on March 30th of 2017. The 3D ERI survey consists of nine (9) parallel two-dimensional (2D) profiles using a combination of both dipole-dipole and strong-gradient arrays. All arrays were collected with the SuperSting R8 WiFi, Switchbox 56, and the FlexLite Passive Electrode Cables with 56 electrodes.  The in-line electrode spacing was 2 m and the cross line electrode spacing was 4 m. Nine parallel transects formed a 3D model with 504 total electrodes.  This model was run with the AGI EarthImager 3DTM resistivity/IP inversion modeling software.  The site surface conditions consisted of nearly 6 inches of asphalt pavement over clay and sandy clays previously identified by limited shallow borings.



Results

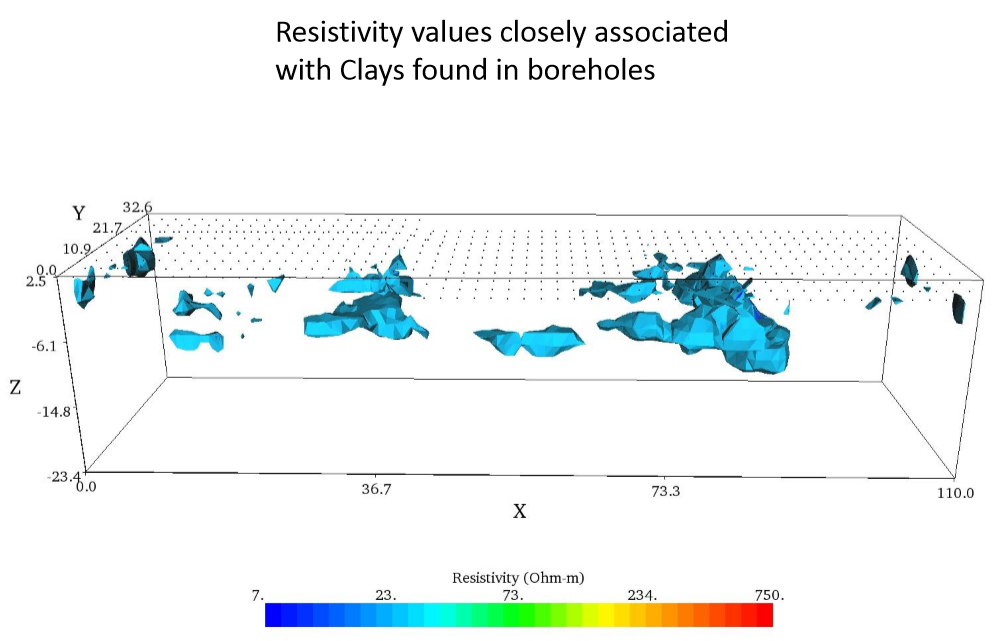

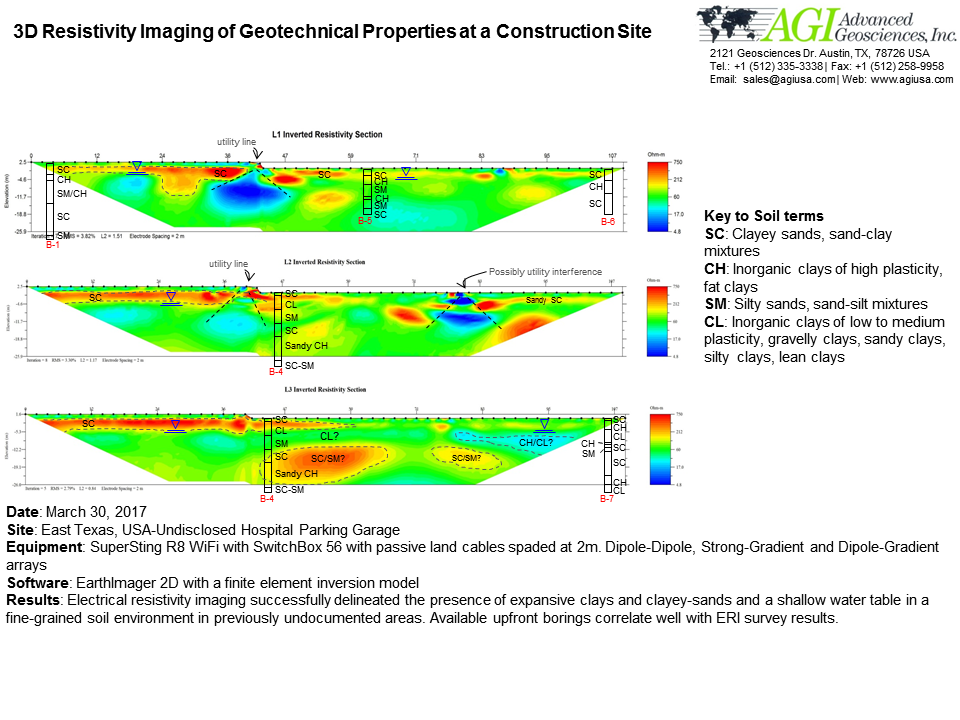

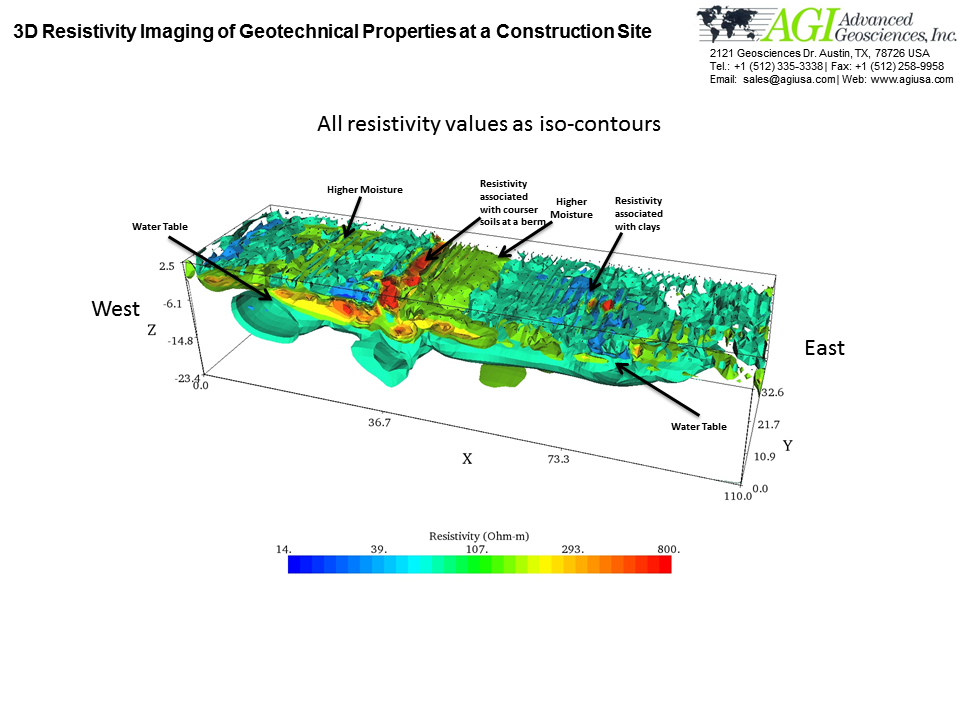

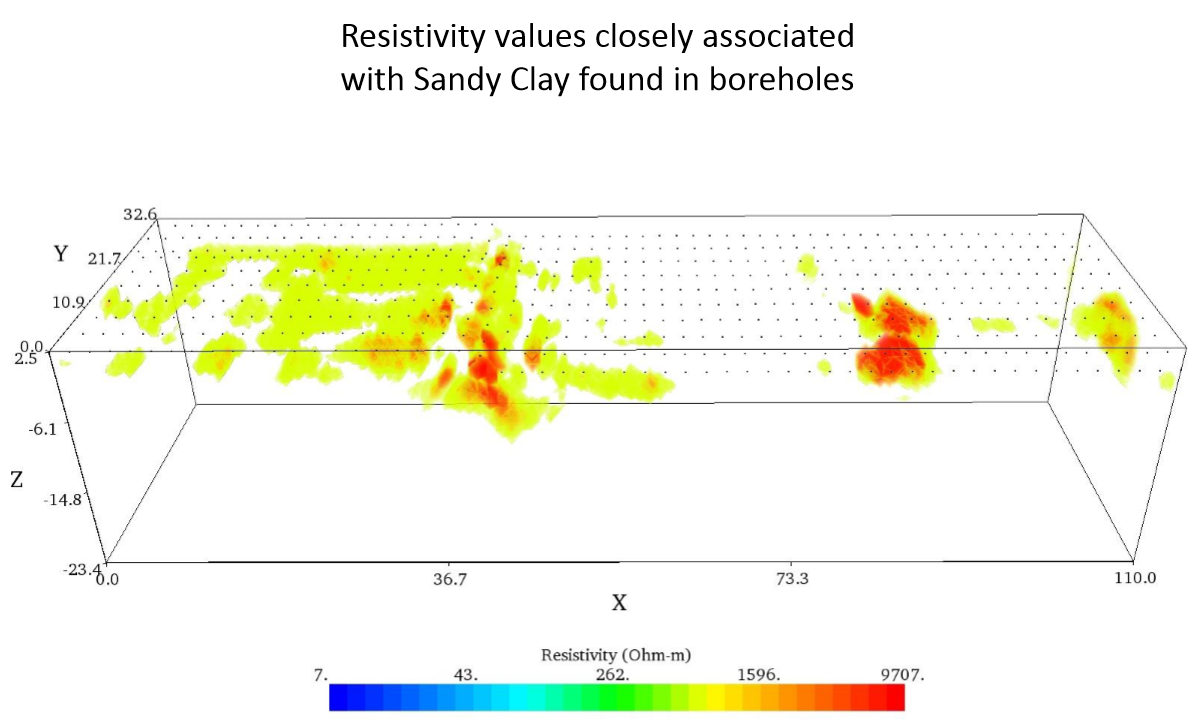

3D Electrical resistivity imaging successfully mapped expansive clays and faster draining sandy-clays as well as the shallow water table.  Available shallow borings were correlated with the 3D ERI survey results. The 3D inverted resistivity model does not reveal the presence of shallow local bedrock that could raise the cost of the excavation and potentially change the design of the parking garage structure.

Video

Please click here to watch the short video of this case history.



Benefits

  • Specially designed tools: These rugged geophysical instruments are useful for electrical resistivity imaging in all kinds of terrain and topographic conditions including urban and remote setting, borehole settings, and marine or underwater settings.

  • High-resolution 3D ERI imaging: obtained by combining parallel 2D profiles to maximize the depth of investigation and survey speed.
