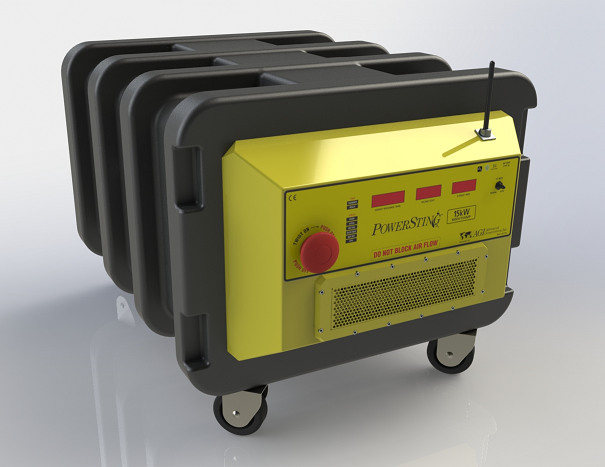

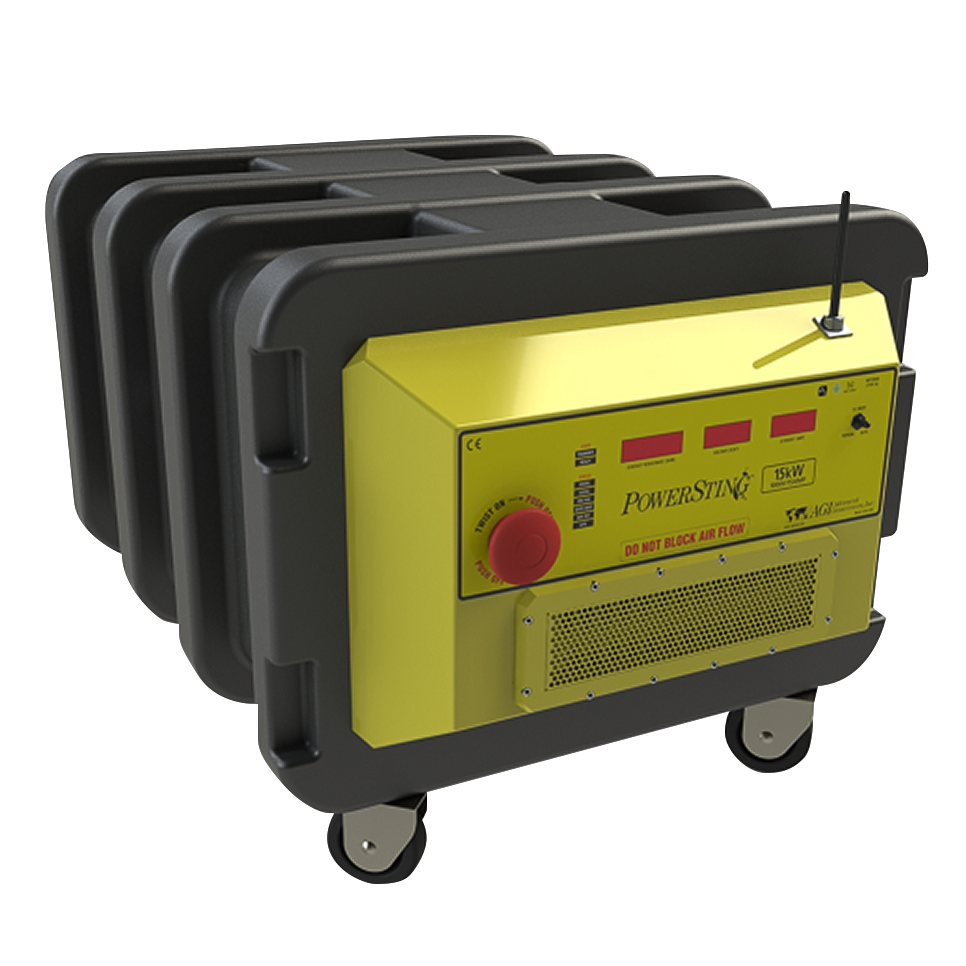

The PowerSting™ system is a series of external high-power transmitters—5-kilowatt, 10-kilowatt, and 15-kilowatt—specifically engineered for the SuperSting™ instrument. The PowerSting™ system is a fully programmable constant voltage/constant current source. It is available with an SGS generator and a wireless repeater box.



Available in three different lines:

5-kW PowerSting™

  • Choose between 2.5 Amp / 2,000 Volt; 5 Amp / 1,000 Volt; or 10 Amp / 500 Volt

  • Power source: Single-Phase, 208-220 Volt, 50/60 Hz, 7.5kw (Minimum)

10-kW PowerSting™

  • Choose between 3.2 Amp / 3,000 Volt; 5 Amp / 2,000 Volt; or 27 Amp / 375 Volt

  • Power source: 3-Phase, 208 Volt, 50/60 Hz, 15 kW (Minimum)

15-kW PowerSting™

  • Choose between 5 Amp / 3,000 Volt; 7.5 Amp/ 2,000 Volt; 10 Amp / 1,500 Volt; 15 Amp / 1,000 Volt; or 30 Amp / 500 Volt

  • Power source 3-Phase, 480 Volt, 50/60 Hz, 22.5 kW (minimum)



Use Cases:

The PowerSting™ system is designed to work for multiple applications, including:

  • Vertical Electrical Sounding

  • 2D Electrical Imaging

  • 3D Electrical Imaging

  • 3D-offset electrical imaging of a 2D survey line in both manual and automatic modes

  • Mineral Exploration

  • Mining

Mineral Exploration For Sulfide Ore Bodies

Mineral exploration and mining is crucial to the developing world—in countries like China, materials to build infrastructure are in high demand, and in order to have these materials, you have to know where to look. That’s where induced polarization (IP) and tools like IP transmitters come in—IP can help find ore bodies (copper, silver, gold, or whatever minerals are needed).

How does it work? The PowerSting™ is used to automatically charge up the large, deep areas of the ground (where ore bodies are suspected). The SuperSting™ then turns off the PowerSting™ IP transmitter and uses its receiver to listen and record the decay of voltage over time. The data is processed using the EarthImager™ 2D or 3D software in order to get chargeability (IP) images, similar to the resistivity images recorded at the same time.



Features:

  • Fully programmable, external high-power (constant voltage/constant current) source can be used with either of our SuperSting™ instruments.

  • Automatic shut-off for input power loss, overheating, over voltage, over current, or fuse in order to keep users safe.

  • Wired communication between SuperSting™ and PowerSting™.



This product is qualified for 100% financing. Learn more.

NewLane Finance

PowerSting

Product Documents

PDF icon Product FAQ (133.9 KB)

Not sure what you need for your survey?

Dimensions and Weights:

5kW Weight: 82.6 Kg (182 lbs.)—Includes Integrated Shipping Case

10kW and 15kW Weight: 102 Kg (225 lbs.)—Includes Integrated Shipping Case

5kW-10kW-15kW Width: 67.5 cm (26.58"); Depth: 91.4 cm (36"); Height: 49.5 cm (19.5")

Other Technical Specifications

  • Output current stability: Automatically controlled

  • Transmitter Lower Current Limit: 1mA.

  • Transmitter Voltage Steps:  1V.

  • Transmitter Current Steps: 1mA.

  • Transmitter Output Voltage Accuracy:  0.1V

  • Storage Temperature: -25°C to 85°C

  • Operating temperature: 0°C to +50°C

  • Display: Built-in LED display indicating status, fault codes, power in watts, current and voltage, contact resistance, transmit function, on/off and emergency shut off. The SuperSting™ and Android device will display all the above parameters along with real time data plot, resistance, resistivity, etc.

  • IP time cycles: 0.5 s/1 s/ 2 s/4 s/8 s, user selectable controlled by SuperSting™

  • Measurement cycle: ON+, OFF, ON-, OFF

  • Time stability: Better than 0.01%

  • Instrument auto shut-off: Protection against over voltage, under voltage, over current, overheating and input power loss

  • Connection between the PowerSting™ and the SuperSting™ is wired with an optional connection.
